Gravity Die Casting Dies

The company has come up as dependable Gravity Die Castings Manufacturer & Supplier, based in Tamil Nadu (India). Gravity Die Castings are made available in varied grades and specifications as per the requirement of the clients. We can manufacture Gravity Die Castings for 1.5 kg to 30 kg for various industrial applications.

Air Pipe

Component Name :  Air Pipe
Mould Type : GDC
Component Weight : 1.7 Kgs
Shell Core Used : Yes
Component Size : Dia 105x375

Bracket

Component Name : Bracket
Mould Type : GDC
Component Weight : 3 Kgs
Shell Core Used : Yes
Component Size : 280*220*80

Coupling

Component Name : Coupling
Mould Type : GDC
Component Weight : 1.5 Kgs
Shell Core Used : No
Component Size : 200*160*180

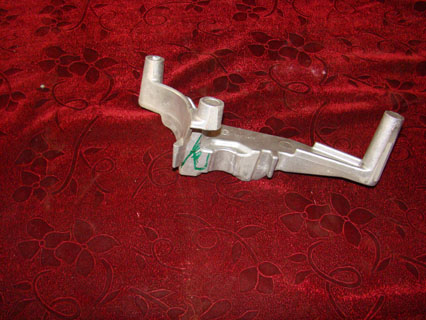

Frame

Component Name : Frame
Mould Type : GDC
Component Weight : 200 gms
Shell Core Used : No
Component Size : 230*220*25

Oil Pan

Component Name : Oil Pan
Mould Type : GDC
Component Weight : 12 Kgs
Shell Core Used : Yes
Component Size : 561X405X300

Terminal Box

Component Name : Terminal Box
Mould Type : GDC
Component Weight : 2 Kgs
Shell Core Used : No
Component Size : 245*200*150

Case

Component Name : Case
Mould Type : GDC
Component Weight : 1.5 Kgs
Shell Core Used : Yes
Component Size : 210*180*180

Air Charge Pipe

Component Name : Air Charge Pipe
Mould Type : GDC
Component Weight : 10 Kgs
Shell Core Used : Yes
Component Size : 741X180X150

ARM

Component Name : Air Charge Pipe
Mould Type : GDC
Component Weight : 1 Kg
Shell Core Used : No
Component Size : 210*160*25

 Comp Housing

Component Name : Comp Housing
Mould Type : GDC
Component Weight : 2 Kg
Shell Core Used : Yes
Component Size : 210*160*100

Compressor Housing

Component Name : Compressor Housing
Mould Type : GDC
Component Weight : 6 Kg
Shell Core Used : Yes
Component Size : 400x300x100

Frame

Component Name : Frame
Mould Type : GDC
Component Weight : 1 Kgs
Shell Core Used : No
Component Size : 340*150*120

Housing

Component Name : Housing
Mould Type : GDC
Component Weight : 3 Kgs
Shell Core Used : No
Component Size : 180x180x70

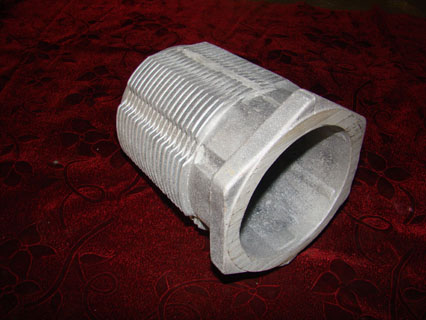

Filter HSG

Component Name : Filter HSG
Mould Type : GDC
Component Weight : 3 Kgs
Shell Core Used : Yes
Component Size : Dia 250x180

Elbow

Component Name : Elbow
Mould Type : GDC
Component Weight : 2 Kgs
Shell Core Used : Yes
Component Size : 350*200*150

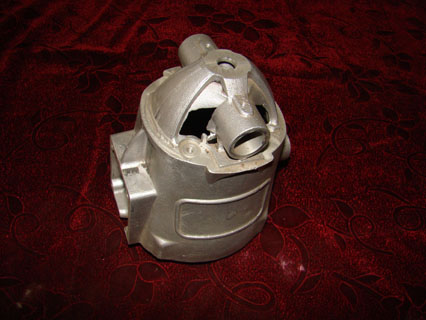

Motor Cover

Component Name : Motor Cover
Mould Type : GDC
Component Weight : 2 Kgs
Shell Core Used : No
Component Size : 150*150*200

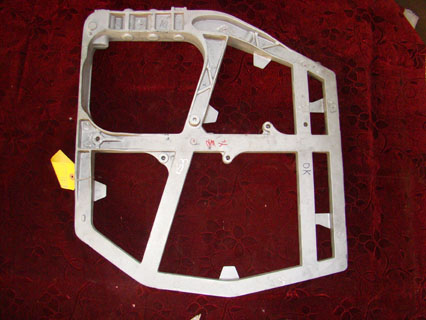

Bracket

Component Name : Bracket
Mould Type : GDC
Component Weight : 4 Kgs
Shell Core Used : No
Component Size : 650*600*40

Gear HSG

Component Name : Gear HSG
Mould Type : GDC
Component Weight : 3 Kgs
Shell Core Used : Yes
Component Size : Dia 150*200

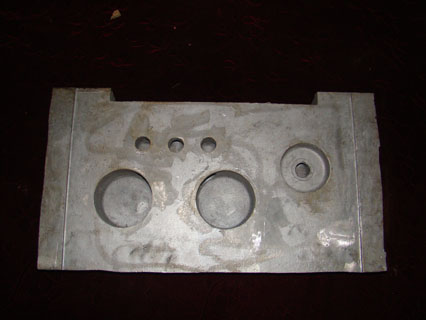

Top MainFold

Component Name : Frame
Mould Type : GDC
Component Weight : 7 Kgs
Shell Core Used : Yes
Component Size : 600x405*80

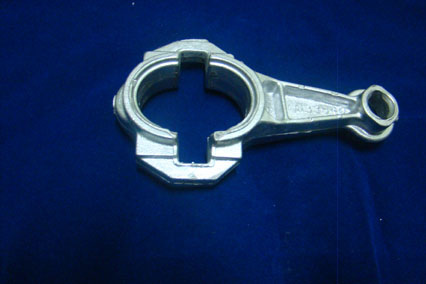

Connecting Rod

Component Name : Connecting Rod
Mould Type : GDC
Component Weight : 200 gms
Shell Core Used : No
Component Size : 120*50*40

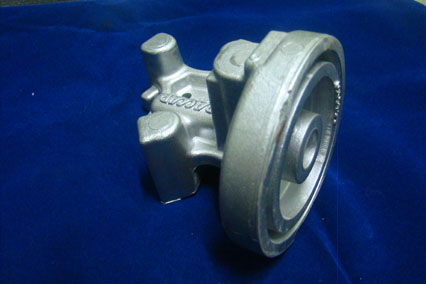

Filter Bracket

Component Name : Filter Bracket
Mould Type : GDC
Component Weight : 600 gms
Shell Core Used : No
Component Size : 120*50*20

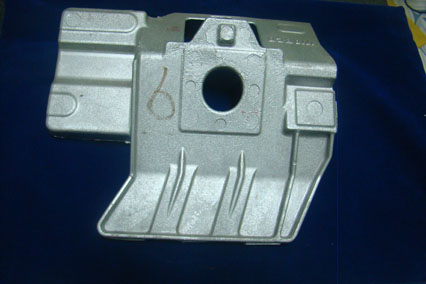

Pedal Box

Component Name : Pedal Box
Mould Type : GDC
Component Weight : 3 Kgs
Shell Core Used : No
Component Size : 300*250*110

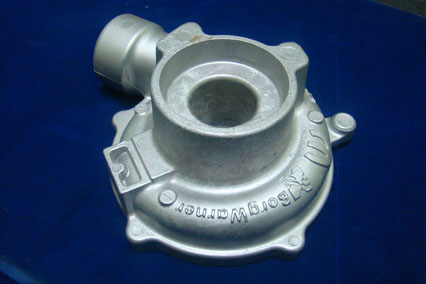

Comp HSG

Component Name : Comp HSG
Mould Type : GDC
Component Weight : 2 Kgs
Shell Core Used : Yes
Component Size : 200*150*110

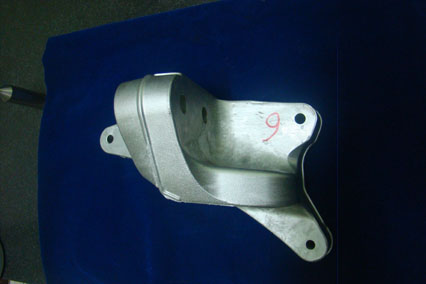

Mounting Bracket

Component Name : Mounting Bracket
Mould Type : GDC
Component Weight : 4 Kgs
Shell Core Used : No
Component Size : 200*250*130

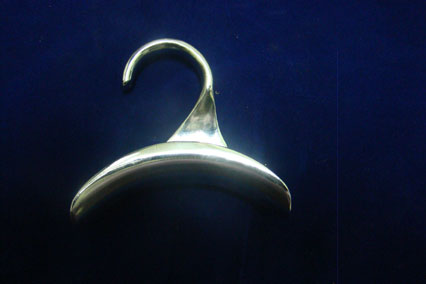

AL Hook

Component Name : Frame
Mould Type : GDC
Component Weight : 40 gms
Shell Core Used : No
Component Size : 120*100*60

Heating Table

Component Name : Heating Table
Component Weight : 60 Kgs
Component Size : 900*700*150
